Domal

Casement System
Ideal for hot and tropical climates, Domal 40 is a
complete system that stands for a good quality-price
ratio and is designed with tradition and innovation.
Domal 40 casement system is the most standard
system based on the simple concept of double
rebate gasket with profiles of small dimensions
aesthetically lighter. Domal 40 casement system
enables the construction of various types of windows
and doors:
Fixed window, side hung window, top hung
window, vertical pivoted window, Tilt & Turn window.
Louver solution: fixed and adjustable louvers within
fixed or opening shutters.
Doors: 1 or 2 sash door, opening inside/outside,
1 or 2 sash swing door, opening both side.
Domal 40 casement system enables various infill
possibilities from 5 mm to 24 mm.

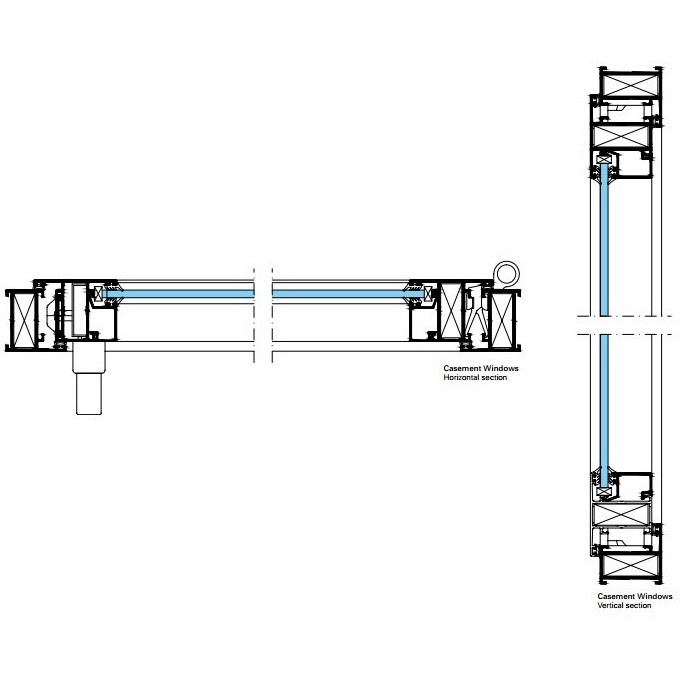

Casement Windows
Windows with outside/inside opening shutters, hung
from any side of the frame. The most common type
of casement windows is with the side-hung shutter.
Features
45 degree joints specially secured by captive die
cast cleats which provide excellent rigidity to corner
joints.
Wide range of aluminium provides to meet wind
and live loads as per requirement for different
projects.
Infill glass can be single or double glazed (thickness
can vary from 5 to 24 mm).
Multiple lock system prevents rattling sound at
high wind speeds.
